MARINE & COASTAL PROJECT
Wharf Support Pile Concrete Repairs

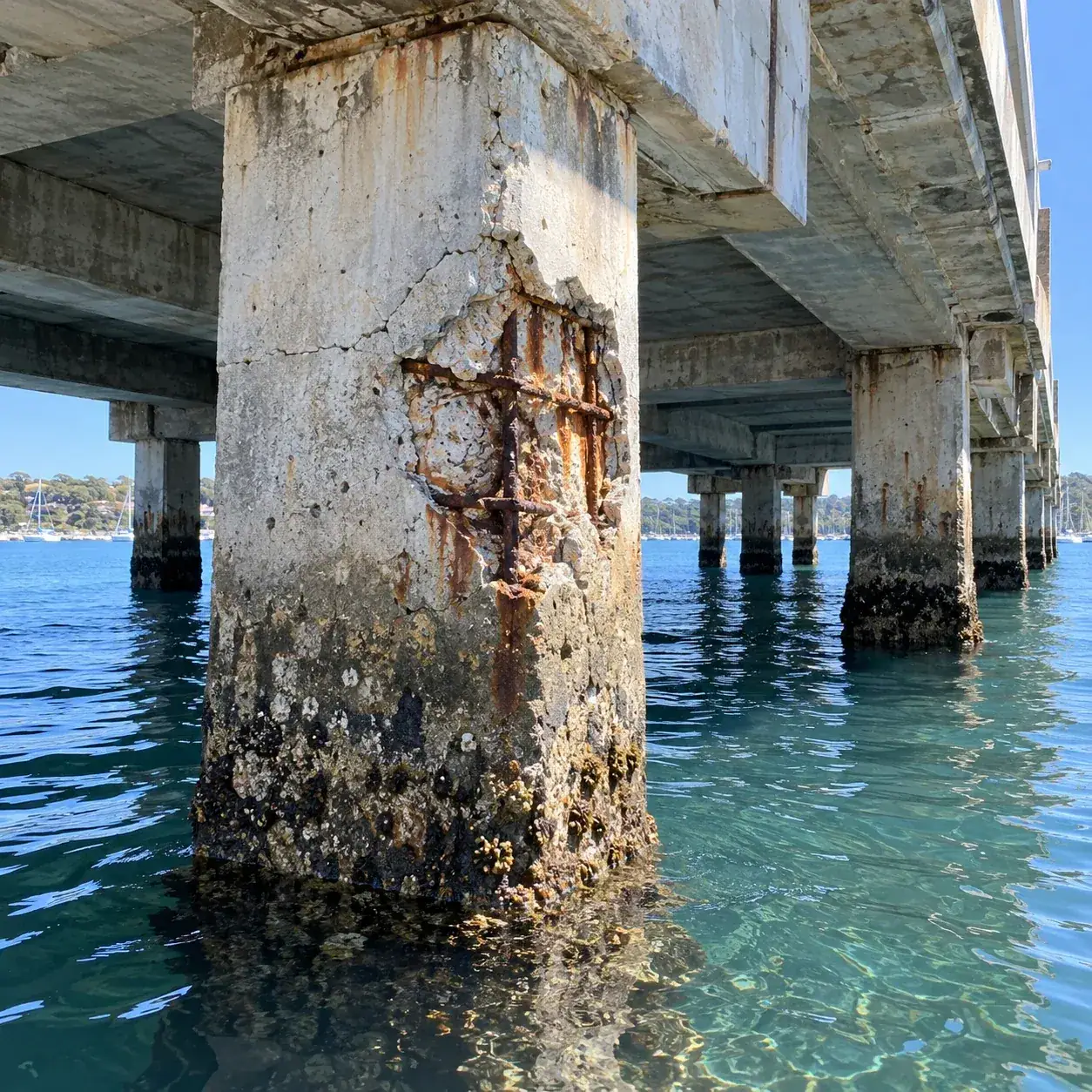

A large wharf support pile with exposed reinforcement, rust staining and fractured concrete beneath the deck.
- PROPERTY TYPE
- Concrete wharf infrastructure
- PROJECT VALUE
- $85,000
- REPAIR SCOPE
- Main wharf support pile
- ACCESS
- Under-deck waterfront access
Before & after

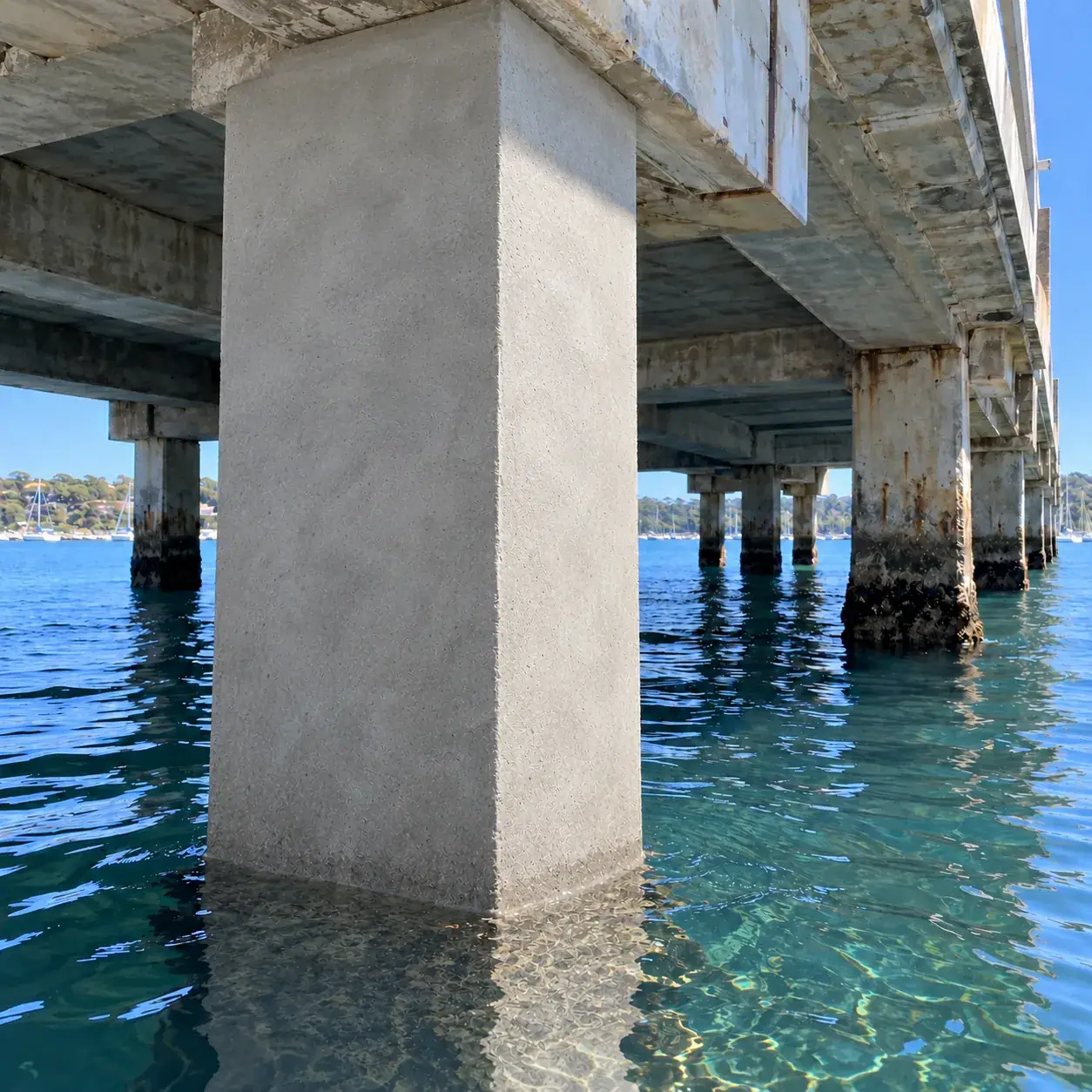

The illustrated repair result
The main pile has a continuous cementitious finish; the surrounding wharf remains outside the repair area.
THE PROJECT SCOPE
What the work involves
This comparison focuses on the large support pile beneath the wharf deck. The before view shows fractured cover and exposed corroded reinforcement. The after view shows the main pile resurfaced down to the waterline. Adjoining beams, overhead concrete and other piles remain visibly weathered, so this example does not represent a complete wharf refurbishment.
Pile faces
Record the open spalls, cracked cover and visible corrosion on the accessible faces.
Adjoining junction
Review the weathered upper junction as a separate assessment area; the image does not show it fully refurbished.
Waterline zone
Assess accessible concrete near marine growth separately from the dry upper faces.
WATERFRONT CONDITIONS
Access & staging
The deck limits overhead clearance, while the water restricts access around the pile. Site planning would need to establish a suitable platform, working windows and debris containment for each face.
A COORDINATED APPROACH
Typical repair sequence
Inspect the pile and junction
Map visible defects on the support and adjoining overhead concrete.
Confirm access and repair details
Establish work positioning and obtain structural input for the assessed damage.
Prepare the repair zones
The specified scope would address unsound cover and the condition of exposed reinforcement.
Reinstate and document
Rebuild the specified profiles, allow for curing and record the completed repair areas.
